The Corsair SF750 (2024) is the best SFX power supply for most gaming PCs because it combines a current ATX 3.1 and PCIe 5.1 platform with a genuinely compact SFX body. Choosing an SFX power supply for a gaming PC starts with the case manual, then the GPU connector, and only then the headline wattage.
How to choose an SFX power supply for a gaming PC
SFX is not simply a smaller ATX supply. A standard SFX unit is 125 mm wide, 100 mm deep and 63.5 mm high. SFX-L keeps the width and height but extends the depth, often to 130 mm, to make room for a larger fan. That extra 30 mm can matter in sandwich-layout cases, where a long unit can crowd the GPU power bend, an AIO tube, or a front-mounted drive. Read the case clearance drawing rather than assuming that every small-form-factor enclosure handles both formats.
Wattage needs a realistic view of the whole system. A 750W unit is a sensible starting point for a single-GPU gaming PC with a mainstream or high-performance CPU, while 850W gives more planning room for a more demanding graphics card and transient loads. A 1000W supply is not automatically better: it can be physically longer, and capacity that your build never needs does not fix poor cable routing. Leave useful headroom, but prioritize the connector set your actual GPU requires.
The connector question is especially important in 2026. ATX 3.1 and PCIe 5.1 supplies can include a native 12V-2x6 cable for newer graphics cards. A native cable reduces adapter clutter, but it still needs a straight, fully seated connection and enough space before the first bend. For cards using conventional 8-pin PCIe inputs, count the separate PCIe leads required by the card. Do not mix modular cables from another PSU, even if the plugs look compatible, because the supply-side pinouts are not standardized.
Cooling has a different character in a small case. Compact supplies use 92 mm fans, while many SFX-L designs use 120 mm fans. A larger fan can be helpful at sustained load, but it costs depth. Look for a mode that stops or slows the fan at light load if a quiet desktop matters, then make sure the case gives the intake grille room to breathe. Efficiency certification also affects waste heat, but it should support, not replace, a fit and cable check.
| Product | Best for | Price |
|---|---|---|
| Corsair SF750 (2024) | Balanced modern mini-ITX gaming PCs | View |
| Cooler Master V850 SFX Gold | 850W systems needing a right-angle GPU lead | View |
| SilverStone SX1000 Platinum | High-draw systems with SFX-L clearance | View |
Corsair SF750 (2024): best overall SFX power supply
Corsair SF750 (2024)
Corsair's SF750 (2024) suits the builder who wants a current, compact foundation without buying more capacity than the system calls for. It is a 750W SFX supply with 80 Plus Platinum certification, a fully modular cable system, ATX 3.1 and PCIe 5.1 support. Its native 12V-2x6 connection is the practical reason for the badge: a compatible GPU can be wired without an adapter bundle, while the included SFX-to-ATX bracket also gives it a second life in a larger case. The Zero RPM mode is useful for light desktop work where a small enclosure otherwise makes fan noise obvious. The limitation is capacity, not quality. It is the wrong choice for a build whose calculated load and upgrade plan genuinely call for 850W or 1000W, and the stiffest GPU cable route still needs measured clearance.
Pros
- Native 12V-2x6 support avoids a multi-plug GPU adapter in a tight case
- Standard 100 mm-deep SFX chassis fits cases that reject SFX-L units
- 80 Plus Platinum efficiency helps limit wasted heat in compact builds
Cons
- 750W leaves less expansion room for very high-draw graphics cards
- The GPU connector still needs a straight, fully seated cable run

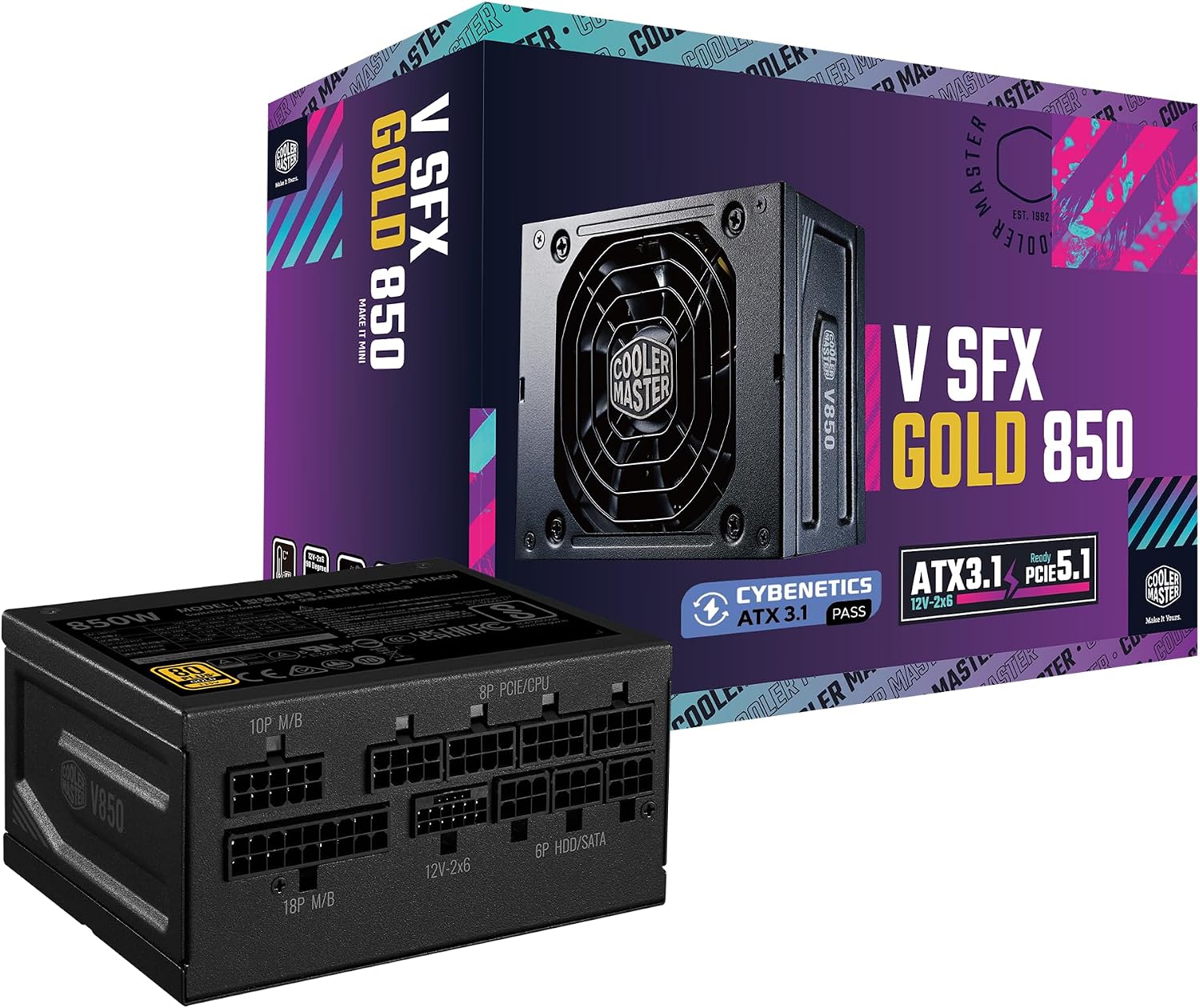

Cooler Master V850 SFX Gold: best 850W option
Cooler Master V850 SFX Gold
The Cooler Master V850 SFX Gold is the better fit when 750W feels restrictive but the case only accepts the shorter SFX form factor. This 850W, fully modular unit measures the standard 100 mm SFX depth and uses 80 Plus Gold efficiency. Its current listing specifies ATX 3.1 and PCIe 5.1 readiness, including a 90-degree 12V-2x6 cable, a meaningful detail in cases where the side panel sits close to the GPU connector. Cooler Master also includes an SFX-to-ATX bracket and backs the unit with a 10-year warranty. It earns the 850W badge because it gives high-performance single-GPU builds additional headroom without forcing the case compromise of SFX-L. The tradeoff is that Gold is a lower efficiency tier than the Platinum alternatives here, and 850W is still not a substitute for checking CPU and GPU demand before selecting a PSU.
Pros
- 850W output adds useful headroom while retaining a 100 mm SFX depth
- Right-angle 12V-2x6 cable can reduce side-panel pressure near the GPU
- Fully modular leads and included ATX bracket broaden case compatibility
Cons
- 80 Plus Gold produces more waste heat than a comparable Platinum design
- Its 90-degree GPU lead must point safely in the direction your case allows

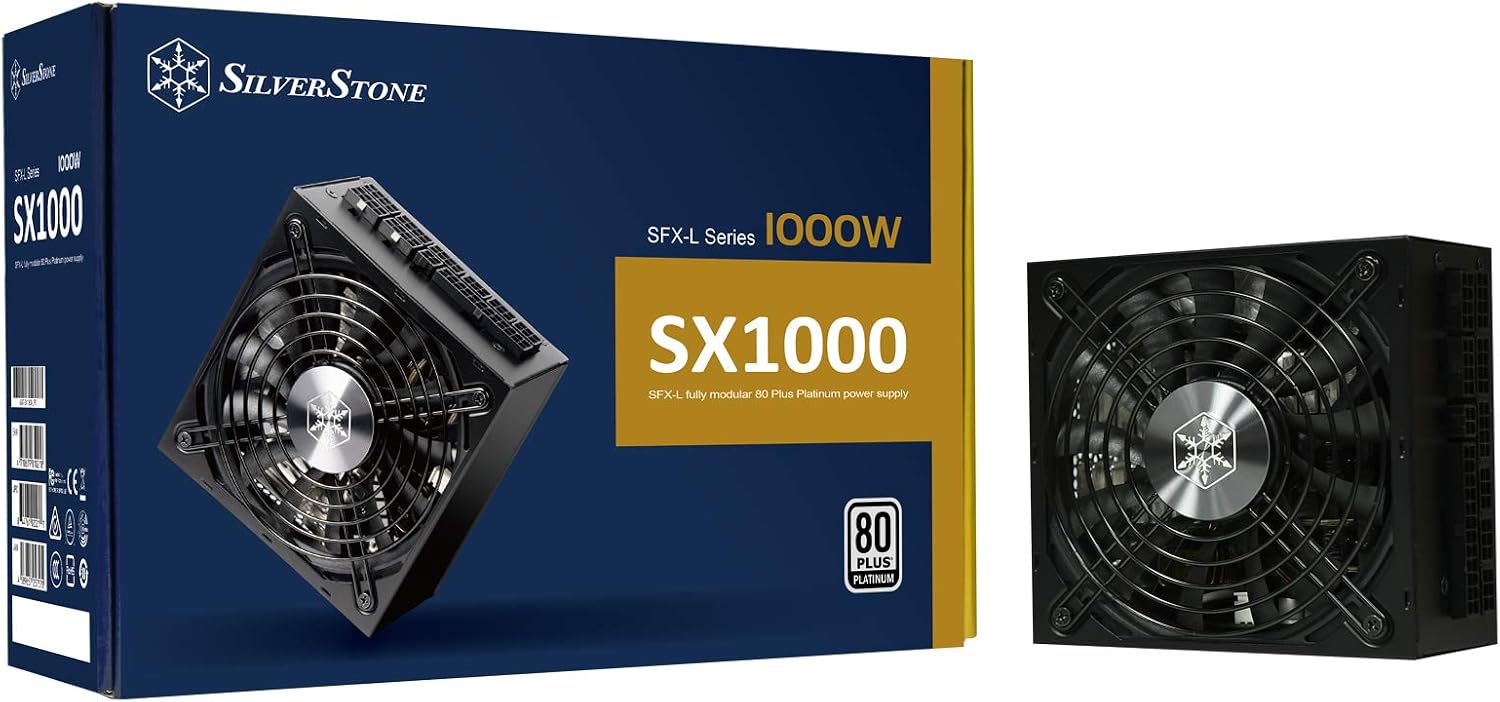

SilverStone SX1000 Platinum: best for maximum power
SilverStone SX1000 Platinum
SilverStone's SX1000 Platinum is for the small-form-factor enthusiast whose component plan genuinely needs 1000W and whose case explicitly supports SFX-L. It supplies 1000W in the longer SFX-L format, pairs that output with 80 Plus Platinum certification, and uses fully modular cables. The 130 mm depth accommodates a 120 mm dual-ball-bearing fan with semi-fanless operation, a different approach from the 92 mm fans typical of standard SFX units. The listing also specifies a single 83.3A +12V rail and six PCIe 6+2-pin connectors, useful facts for a high-draw system with conventional PCIe-powered hardware. Its badge is about power density, not universal fit. It lacks the shorter 100 mm body of the other two choices, and its older connector arrangement means a builder with a native 12V-2x6 GPU should verify the included cable solution before buying.
Pros
- 1000W capacity serves demanding compact systems with a planned power budget
- 120 mm dual-ball-bearing fan suits sustained loads in a compatible SFX-L case
- Six PCIe 6+2-pin connectors support hardware using conventional GPU plugs
Cons
- 130 mm SFX-L depth excludes many compact sandwich-layout cases
- Older cable provision requires extra checking for a native 12V-2x6 graphics card
Make the final choice from the case outward
Start with the physical standard: buy the SF750 or V850 when the case calls for SFX, and consider the SX1000 only when its SFX-L depth is documented as safe. Next, make a connector map from the GPU manual and motherboard power sockets. Finally, choose the capacity that leaves sensible headroom after estimating the CPU, GPU and accessory load. This order prevents the most expensive mistake in a compact build: choosing an impressive PSU that cannot be installed with a safe cable bend.
The SF750 suits a modern 750W build with native 12V-2x6. The V850 adds planned wattage under similar constraints. The SX1000 is specialized hardware for a physically compatible high-demand configuration.
FAQ
Is SFX-L compatible with an SFX case?
Not necessarily. SFX-L has the same face dimensions as SFX but is usually 30 mm deeper. Some cases list support for both, while others reserve that extra space for a GPU, radiator, drive cage, or cable bend. Check the manufacturer clearance diagram and include the space needed for modular plugs, not just the metal PSU enclosure.
Is 750W enough for a gaming PC in a mini-ITX case?
It can be, provided the CPU, graphics card and planned upgrades fit within a sensible power budget. The important work is calculating the hardware combination and checking its required GPU connectors. A 750W unit with the correct native cable can be a better compact-build choice than a larger supply that forces an adapter or does not fit the case.
Should I use cables from an older modular PSU?
No. Modular PSU cables are not interchangeable across brands and can also differ between series from the same brand. The connector may physically fit while the wiring at the PSU end is different, which risks damage. Use only the cables supplied with the chosen PSU or replacements explicitly specified by its manufacturer for that exact model.
