Best PC PWM and ARGB Fan Hubs in 2026
Compare the best PC PWM and ARGB fan hubs for tidy, reliable cooling builds, including a 10-port option and a premium fan-only hub for quieter systems.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
Prices and availability are accurate as of the time of publication and are subject to change.
Best PC PWM and ARGB fan hubs in 2026
The Thermalright ARGB Fan Hub is the best pick for most gaming PCs because it combines PWM fan distribution and 5V ARGB routing in one small, SATA-powered board. It solves the usual problem of a case with more fans than motherboard headers without turning the rear panel into a nest of splitter cables. The TUMMASTER is the better fit when a showcase case needs more connections, while the Noctua NA-FH1 is the carefully engineered choice for builders who only need fan control and do not want lighting on the same hub.
| Product | Best for | Price |
|---|---|---|
| Thermalright ARGB Fan Hub | Best overall | View |
| TUMMASTER 10-Port ARGB Hub | Best for large builds | View |
| Noctua NA-FH1 | Best premium PWM hub | View |
What a combined fan and lighting hub actually does
A fan hub copies one motherboard fan-control signal to several fans. With PWM fans, the board reads the speed curve from its source header and applies the same control signal to every connected fan. That is useful for front intakes, top exhausts, or a radiator group that should rise and fall together. It is not the same as having independent curves for every fan, so plan zones before you buy. Put fans with the same job on one hub; do not expect it to make a noisy rear exhaust behave like a CPU radiator fan.
ARGB is separate. The common PC standard is a 5V, three-pin addressable connector, which lets compatible software or a controller set colors and effects. A combined hub carries fan power and lighting through different circuits, even if both sit on one PCB. That distinction matters when troubleshooting: a spinning fan with no light often points to the ARGB cable or source header, while lights with no fan movement point to fan power, SATA power, or the PWM input.
The practical advantage is cable routing. One SATA feed can support the group instead of asking a single motherboard header to power every fan. Avoid mixing 12V RGB plugs with 5V ARGB plugs, align the marked arrow or 5V pin, and shut the system down before changing connectors.
Thermalright ARGB Fan Hub: Best overall
Thermalright ARGB Fan Hub
Thermalright earns the overall badge because it gives a typical gaming build both of the things it lacks first: additional PWM fan connections and a matching bank for 5V three-pin ARGB lighting. Its SATA power connection is important for a six- or eight-fan layout, since the hub does not have to rely on the limited current budget of one motherboard header. The compact board also makes sense behind a motherboard tray, where one source cable and grouped fan leads are easier to trace than several Y-splitters. Choose it for an air-cooled mid tower or an AIO build with coordinated case lighting. The tradeoff is shared control: fans on the hub follow one motherboard PWM curve, and it is only suitable for 5V addressable RGB, not older 12V four-pin RGB equipment.
Pros
- SATA power reduces load on a single motherboard fan header
- Pairs PWM fan distribution with 5V three-pin ARGB routing
- Compact layout helps hide several fan and lighting leads
Cons
- All connected fans follow the same PWM control source
- Cannot be connected to a 12V four-pin RGB header

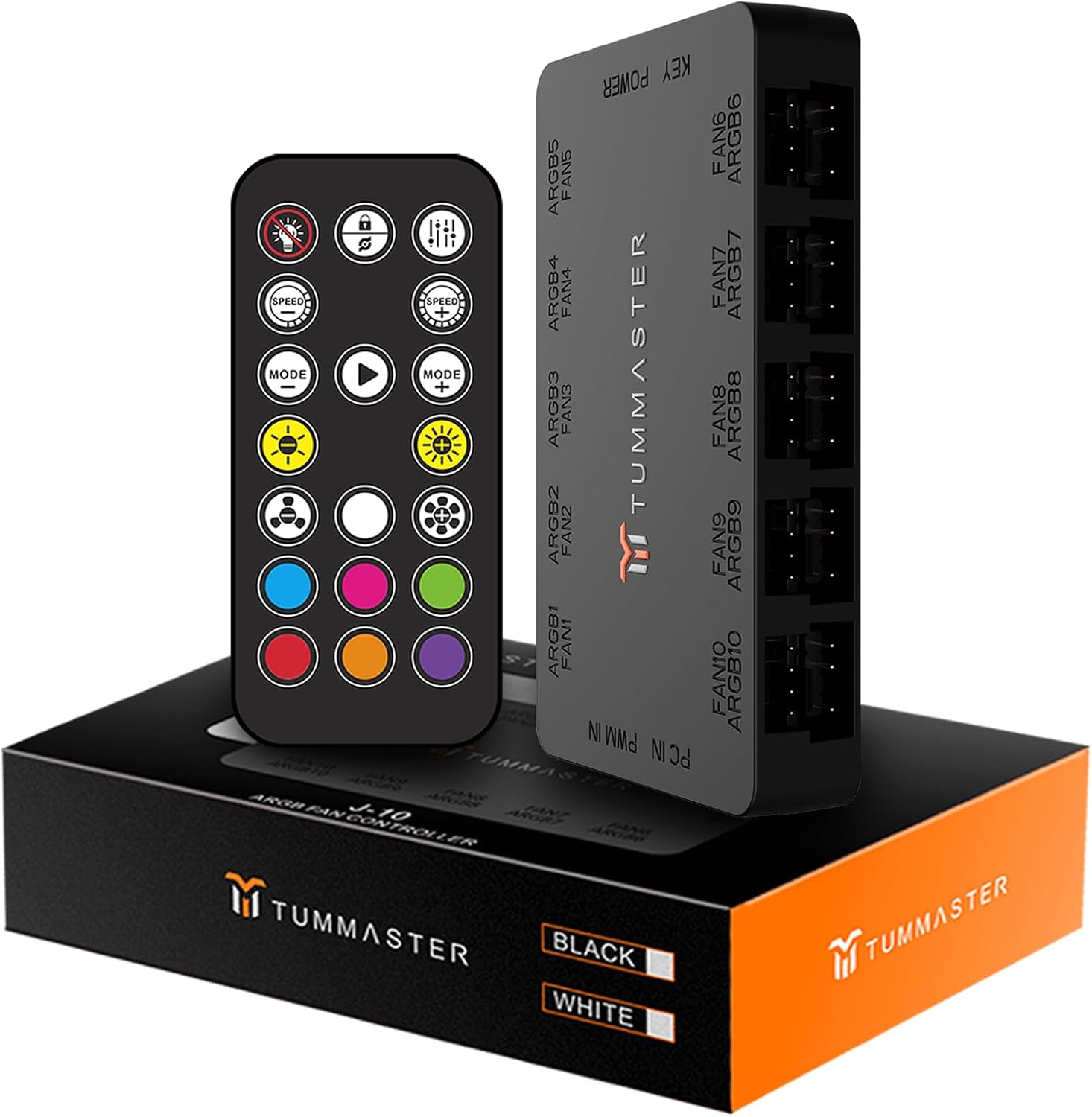

TUMMASTER 10-Port ARGB Hub: Best for large builds
TUMMASTER 10-Port ARGB Hub
The TUMMASTER 10-Port ARGB Hub is the sensible alternative when the limiting factor is connection count rather than software features. Its ten-port layout is designed for cases with a dense fan arrangement, such as dual-chamber towers, multiple radiator positions, or a front panel filled with matching fans. Like the Thermalright, it uses SATA power and separates the PWM fan side from the 5V three-pin addressable-lighting side, so one motherboard PWM header and one ARGB header can coordinate a larger group. This makes it a strong choice for builders who value a clean rear compartment and want every fan effect to remain synchronized. Its limitation is the same one that keeps it simple: it mirrors one fan signal and one lighting source, so it cannot give ten fans independent speed curves or turn incompatible RGB hardware into ARGB hardware.
Pros
- Ten-port arrangement suits fan-heavy dual-chamber cases
- SATA-fed design is better than stacking many passive splitters
- Synchronizes a large group from one PWM and one 5V ARGB source
Cons
- No per-fan speed adjustment from the hub
- Large cable bundles still need careful labeling during installation

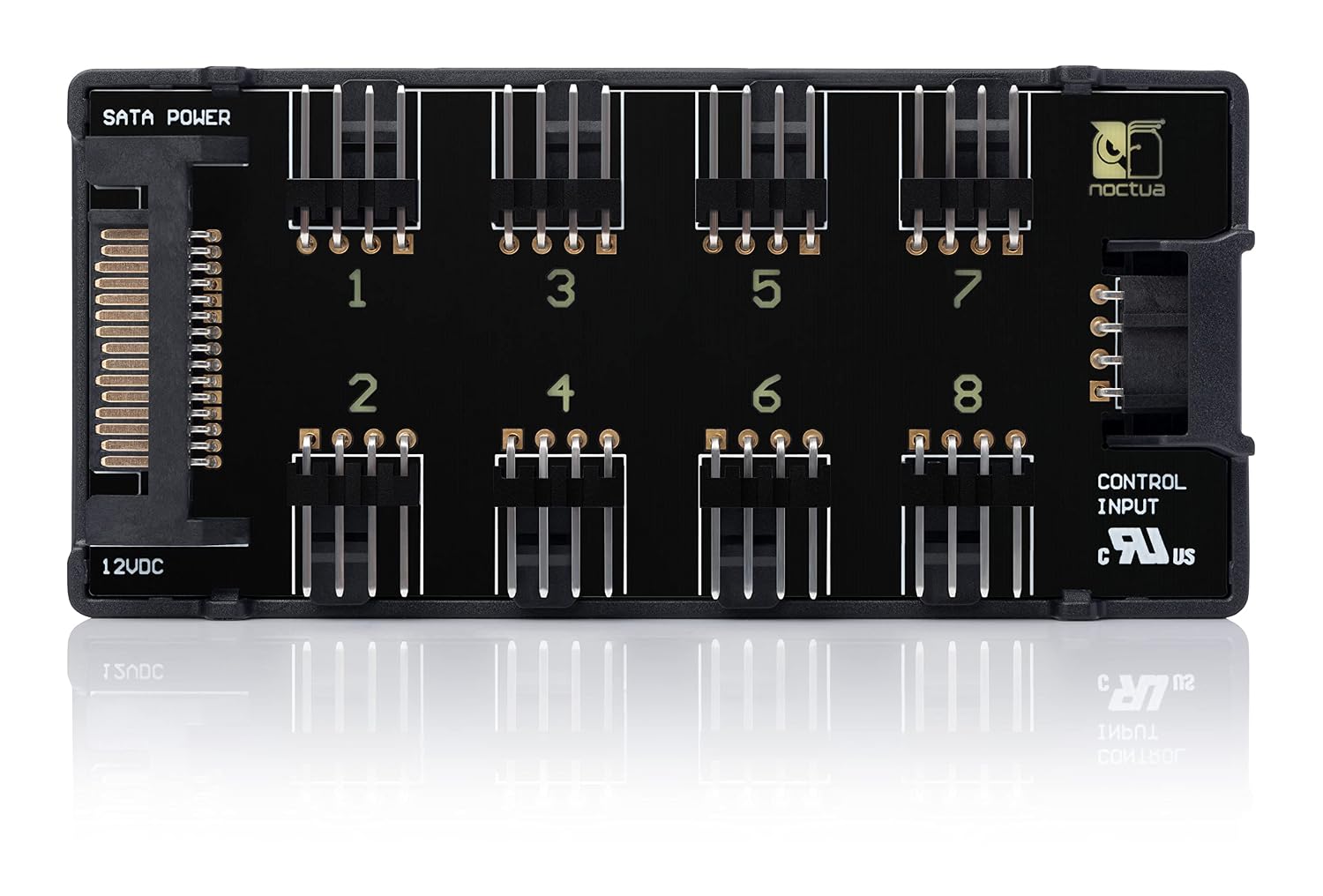

Noctua NA-FH1: Best premium PWM hub
Noctua NA-FH1
The Noctua NA-FH1 is for builders who prioritize reliable fan control over RGB consolidation. It is an eight-channel PWM hub with SATA power and standard four-pin fan ports, built to distribute one PWM command cleanly to a controlled group. That makes it particularly useful for quiet builds using several premium case fans, where a stable shared curve and sensible mounting matter more than decorative lighting. It also avoids forcing an ARGB circuit into a system that may use no LEDs at all. Choose the NA-FH1 when the motherboard has enough lighting connections already, or when the build uses non-RGB fans and you want a dedicated fan-management component from a cooling specialist. The meaningful limitation is clear: it has no ARGB ports, so RGB fans still need a separate lighting hub or motherboard header.
Pros
- Eight PWM channels provide a dedicated fan-management point
- SATA-powered design suits multi-fan quiet PC builds
- No lighting circuit to complicate a non-RGB installation
Cons
- Provides no ARGB connections for illuminated fans
- Premium focus may be unnecessary for a basic three-fan case
How to choose the right hub for your case
Count fans and lighting leads separately. A pack of three ARGB fans often creates three fan plugs and three ARGB plugs, so a fan-only hub will not tidy every cable. Then identify the motherboard headers. The label may say CHA_FAN, SYS_FAN, ADD_GEN2, D_LED, JRAINBOW, or something similar, but the pin count and voltage are the safer guide. A 5V ARGB source has three active pins with a gap; traditional RGB uses four pins at 12V.
Also decide whether a shared curve makes sense. Three front intakes can normally share one curve, while an AIO pump must not be put on a fan hub unless the manufacturer explicitly permits it. If your motherboard only exposes one system-fan header, a SATA-powered hub is usually neater than chaining splitters. If it exposes several headers, splitting the build into intake and exhaust zones can give better acoustic tuning.
Mount the board where SATA power and the motherboard input can reach without straining, then connect power, control inputs, fan groups, and ARGB plugs. Boot with the side panel off, confirm every fan spins, and test a simple lighting color before installing cable ties.
FAQ
Can I connect both three-pin and four-pin fans to a PWM hub?
Most PWM hubs use four-pin fan sockets and can physically accept common three-pin fans, but only four-pin PWM fans can use the PWM control signal as intended. Three-pin fans may instead run through voltage-based behavior determined by the source and hub. Check the hub documentation and use matched PWM fans when you want predictable synchronized curves.
Will an ARGB hub work with 12V RGB fans?
No. A 5V three-pin ARGB connector and a 12V four-pin RGB connector use different voltage and signaling. They must not be forced together with an adapter unless that adapter is specifically designed as an active converter. Confirm the markings on the fan, hub, and motherboard before connecting anything.
Do I need a SATA-powered hub for four case fans?
Not always, because the safe load depends on the fan current and motherboard-header rating. A SATA-powered hub is a sensible precaution when several fans share one source, especially with high-speed or RGB-equipped models. It centralizes the power feed while the motherboard still supplies the control signal.
Prices and availability are accurate as of publication and can change.
