Best Low-Profile CPU Coolers for Gaming PCs in 2026

The Noctua NH-L12S is the best low-profile CPU cooler here for most gaming PCs that can accept 70mm of height. It gives a compact Mini-ITX build a 120mm slim fan, four heatpipes and a more forgiving thermal ceiling than the 47mm choices. The best low-profile CPU cooler is never chosen by height alone, though: side-panel clearance, socket, RAM area and the CPU's sustained power limit all matter.

Quick comparison of low-profile CPU coolers

Low-profile cooling is a packaging exercise before it is a benchmark contest. A cooler that is 47mm tall can fit cases that reject a 53mm model, while a 70mm design can be the sensible upgrade when the chassis permits it. Do not treat the quoted height as the only dimension. Check the footprint around the CPU socket, the direction of the heatpipes and whether a fan position affects tall memory or a case rail.

For gaming, a sensible CPU power target also pays off. A compact cooler can handle short bursts differently from an extended all-core rendering job. That does not make it unsuitable for games, but it does mean an unlocked high-wattage processor is a poor match simply because the cooler physically fits. Favor a balanced CPU, sensible BIOS power settings and clean case airflow. The choices below cover three useful height brackets rather than pretending one heatsink suits every small case.

Best low-profile CPU cooler overall: Noctua NH-L12S

Best overall

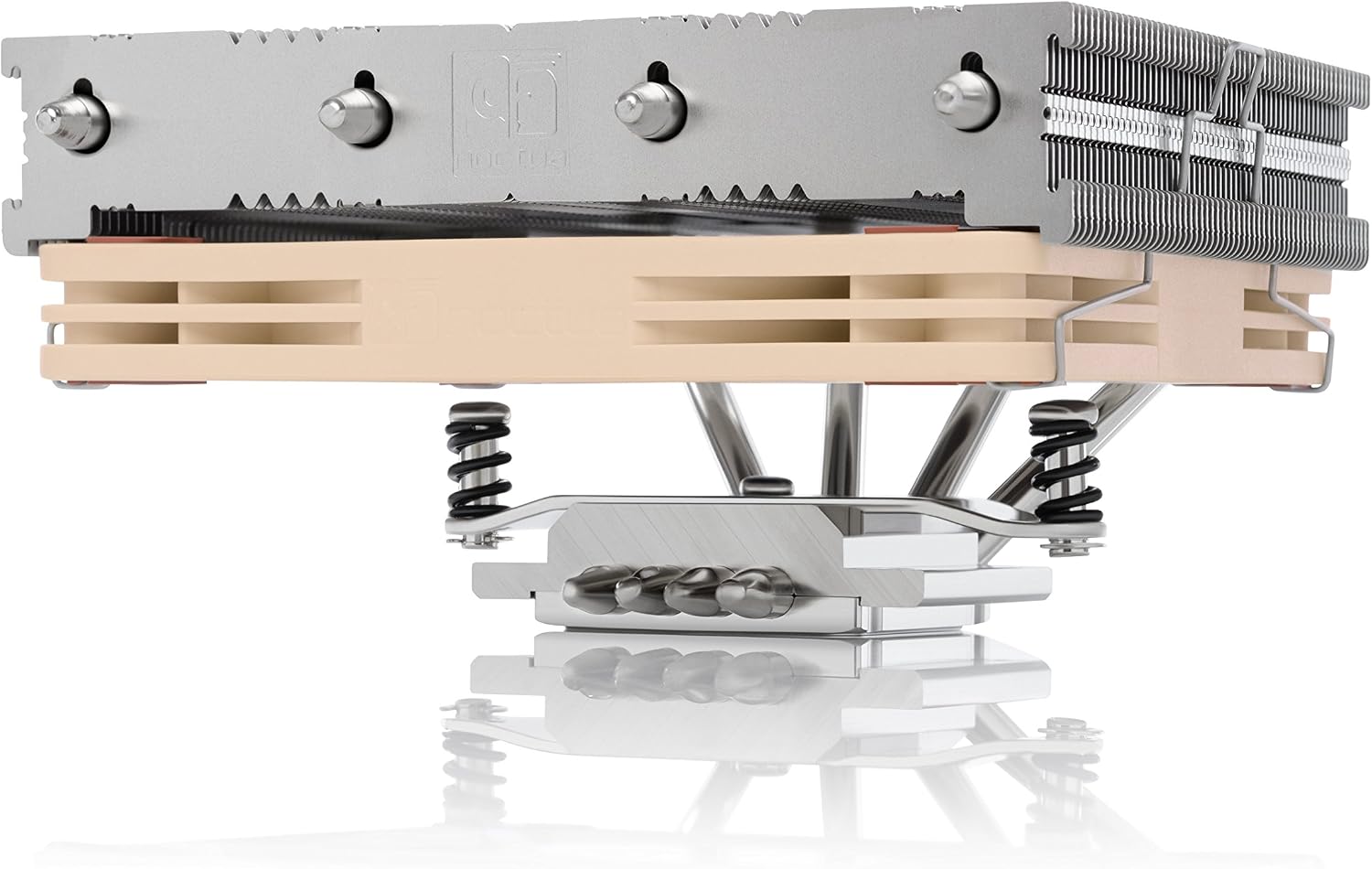

Noctua NH-L12S

The NH-L12S earns the overall badge because its 70mm height allows a larger cooling assembly without becoming a tower cooler. Amazon lists four heatpipes and Noctua's NF-A12x15 120mm PWM slim fan, while the supplied Low-Noise Adaptor gives builders another way to temper fan speed. Its fan can be mounted beneath or above the fin stack, which is useful when a particular board or case creates a clearance conflict. It also includes NT-H1 paste and SecuFirm2 mounting for Intel LGA1851, LGA1700, LGA1200, LGA115x plus AMD AM5 and AM4. Choose it for a 70mm-capable Mini-ITX gaming case and a CPU with a realistic power plan. Its limitation is decisive: it simply will not fit a 47mm or 53mm enclosure, and the broader footprint still requires a motherboard clearance check.

Check price on Amazon

The important advantage is not a promise of universal temperatures. It is the extra physical headroom that lets the NH-L12S use a 120mm-class slim fan. That tends to be easier to tune for a living-room PC than forcing a smaller fan to work at its top range. The offset mounting option for supported AMD platforms is another installation detail worth checking in Noctua's documentation before buying.

Best for strict height limits: Thermalright AXP90-X47 Full

Best for 47mm cases

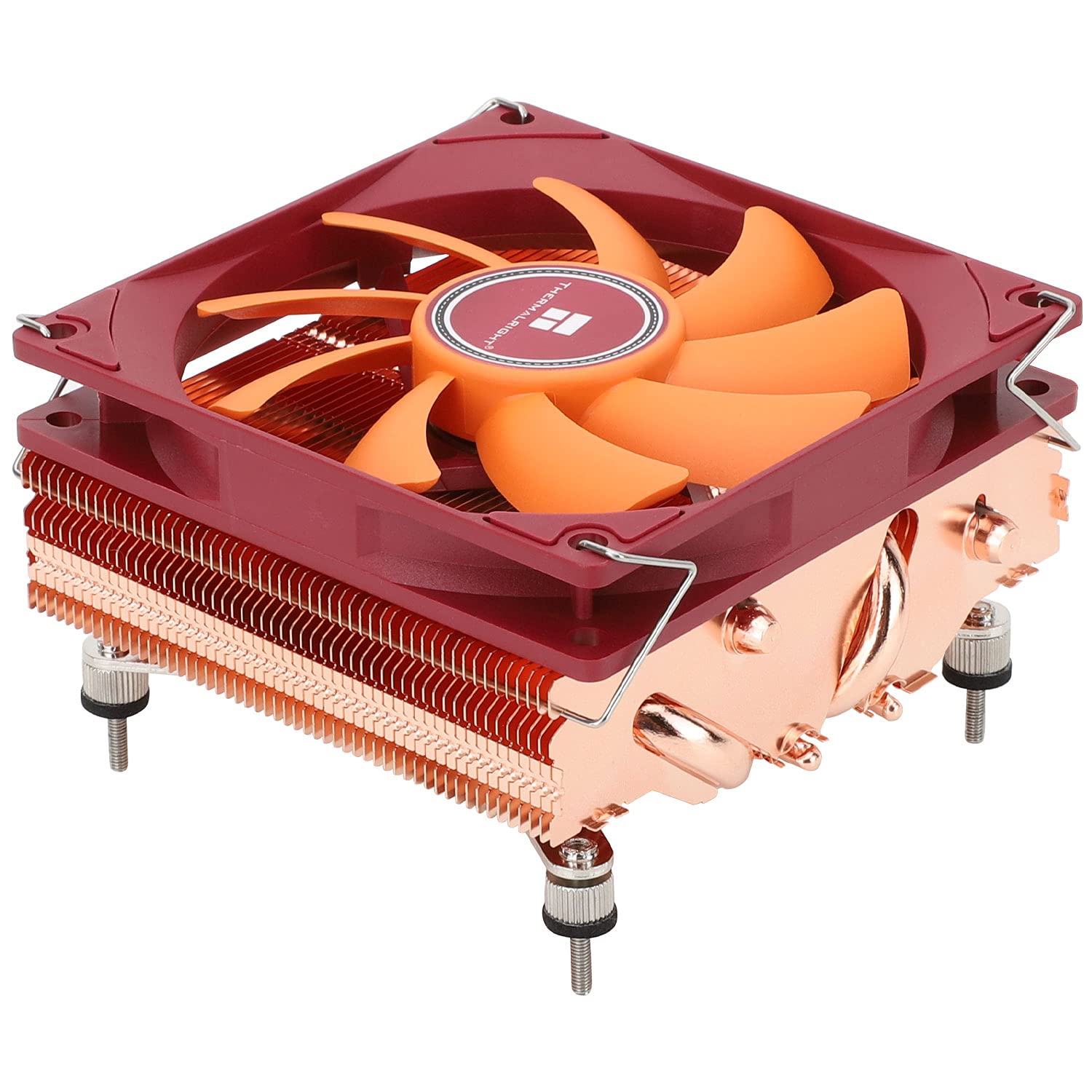

Thermalright AXP90-X47 Full

The AXP90-X47 Full is the pick when 47mm is a hard case limit, not a preference. Its listing specifies a 47mm total height, a 97 by 92 by 32mm heatsink and a 92 by 92 by 15mm TL-9015R PWM fan. Four heatpipes and a pure-copper base give this tiny assembly a more serious heat path than its size suggests, and the listing quotes 42.58 CFM with a 22.4 dB(A) noise figure for the fan. It supports AMD AM4 and AM5 plus Intel LGA1150, 1151, 1155, 1156, 1200 and 1700. Choose it for an ultra-constrained console-style or sandwich build after checking the actual socket hardware. The tradeoff is limited fin and fan area: it is not the right excuse to run an unrestricted hot CPU in a sealed case.

Check price on Amazon

Its copper construction is meaningful because the X47 has so little volume to spare. Still, a compact heatsink cannot change the case's intake and exhaust path. Pair it with a CPU that you are comfortable power-limiting, avoid blocked side vents and use a fan curve that reacts smoothly instead of hunting between loud speed steps.

Best 53mm step-up: Thermalright AXP90-X53 Full

Best 53mm alternative

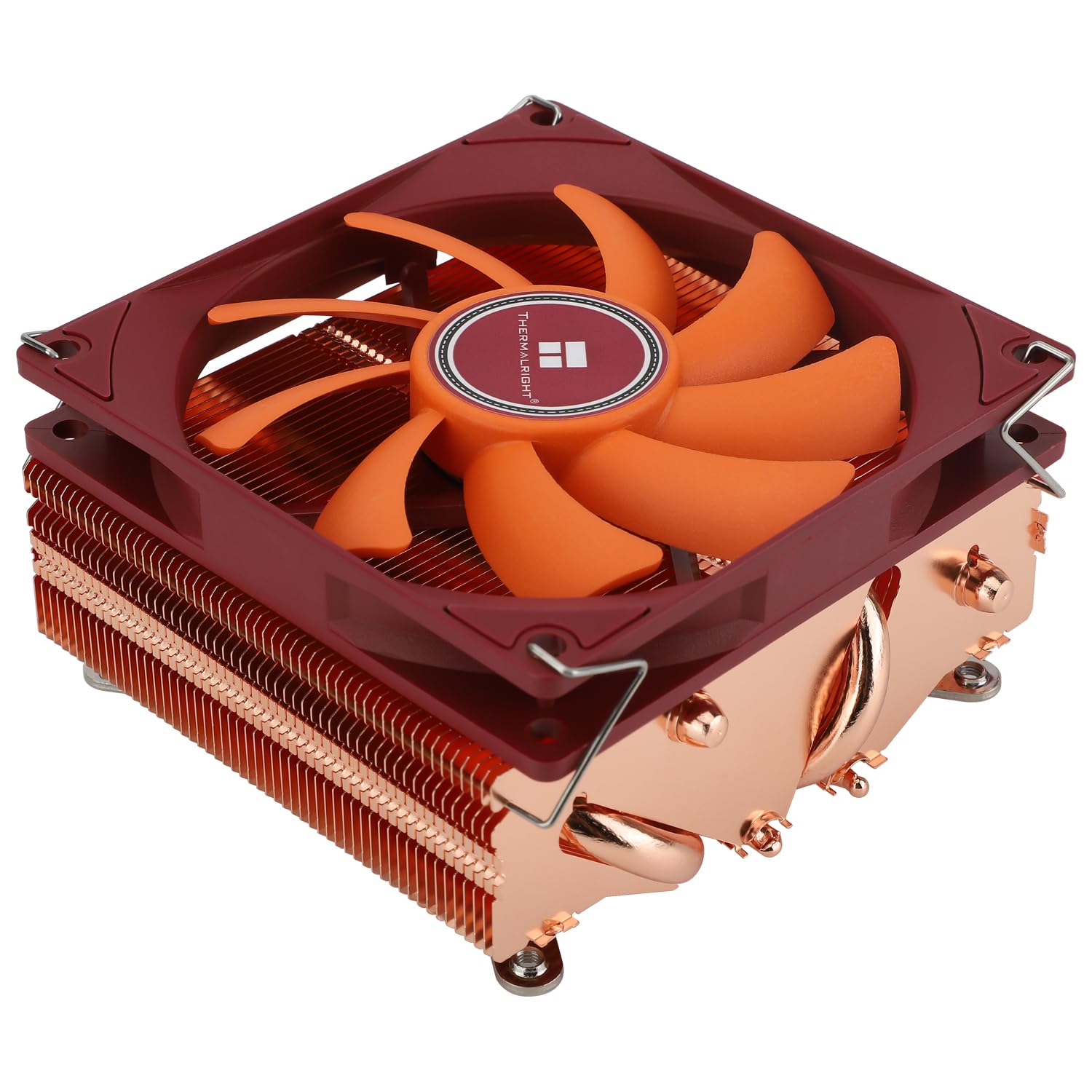

Thermalright AXP90-X53 Full

The AXP90-X53 Full is for builders whose case has 53mm clearance and who want a small but useful step above the X47 format. The Amazon listing identifies it as a 53mm low-profile ITX cooler with a 92mm TL-9015R slim PWM fan and AGHP heatpipe technology. It is listed for AMD AM4 and AM5 and for Intel LGA1700, LGA1150, LGA1151, LGA1200 and LGA1851, so it is the most straightforward Thermalright choice here for a current LGA1851 plan. Its extra six millimeters are not a license to ignore airflow, but they can be valuable where a 47mm ceiling is not fixed. Choose it for a compact gaming system that has exactly this additional room. Skip it if the side panel is 50mm away, because contact with the panel defeats the point of a careful fit.

Check price on Amazon

How to choose a low-profile cooler for gaming

Start with the case manual and measure again if cables, a riser or a GPU shroud share the CPU chamber. Clearance specifications can be conditional on a side bracket or fan position. Then check the motherboard's socket keep-out area and the cooler maker's compatibility list. Socket support is not interchangeable between every revision, especially when a platform adds a mounting pattern.

Next, match cooling volume to the workload you actually run. A gaming PC spends much of its time below an all-core stress test, but modern games can keep a processor busy for hours. A 47mm cooler rewards sensible power limits and an unobstructed vent. At 53mm, the X53 adds a small fitting margin only if the case truly allows it. At 70mm, the NH-L12S is the better all-round choice when its footprint and height fit.

Finally, plan the installation before applying paste. Confirm which fan orientation clears memory, whether a backplate can be fitted with the board in the case and where the PWM cable will route. A quiet curve and filtered, open intake are often more useful than chasing a single peak temperature. Prices and availability are accurate as of publication and can change.

FAQ

Is a low-profile CPU cooler enough for a gaming PC?

Yes, when the cooler height, CPU power target and case airflow are matched. A 47mm model is appropriate for an extremely small build with a sensible processor setup, while a 70mm NH-L12S has more physical cooling area for a roomier SFF case. Do not assume fit alone guarantees quiet operation under long gaming sessions.

Should I choose the 47mm X47 or 53mm X53?

Choose the X47 when your case documentation sets a 47mm maximum. Choose the X53 only after confirming at least 53mm of real clearance with the panel and any brackets in place. The X53 is also listed with LGA1851 support, whereas the X47 listing names up to LGA1700, so socket compatibility can decide the comparison.

Does the NH-L12S fit every Mini-ITX motherboard?

No. The NH-L12S supports common Intel and AMD sockets, but its 70mm height and broad fin stack still require a check against your case, RAM and motherboard heatsinks. Its fan can be mounted above or below the fins, which can help with a particular layout, but it does not remove the need to consult the compatibility information.
