Best AM5 CPU Coolers for Gaming PCs in 2026
The Noctua NH-D15 chromax.black is the best AM5 CPU cooler here for a gaming PC that has room for it: its two 140 mm PWM fans and broad dual-tower heatsink prioritize sustained, low-noise cooling. The right cooler is not simply the largest one available. An AM5 build also needs a mount for the socket, clearance under the side panel, sensible RAM spacing, and a fan profile that does not turn every game loading screen into a reminder of the CPU temperature.
AM5 CPU cooler comparison at a glance
| Product | Best for | Price |
|---|---|---|
| Noctua NH-D15 chromax.black | Best overall | View |
| Cooler Master Hyper 212 Black | Best value | View |
| Thermalright Burst Assassin 120 ARGB | Best for compact RGB builds | View |
Why air-cooler fit matters on an AM5 gaming build
AM5 does not make every older cooler automatically suitable. The relevant question is whether the package includes the AM5 hardware and whether the installation leaves the motherboard, memory and case in a workable arrangement. All three choices here explicitly support AM5, but they occupy very different amounts of vertical and horizontal space. That matters when a tall memory heat spreader meets a front fan, or when a narrow case offers only a little more clearance than the cooler's published height.
The Noctua is a 168 mm dual-tower design with six heatpipes, two 140 mm NF-A15 PWM fans, a SecuFirm2 mounting system and supplied NT-H1 thermal compound. Its front fan can need to be raised when RAM is tall, which increases the effective height beyond the nominal figure. The Cooler Master is a slimmer 152 mm single tower with four heatpipes, a copper base and one SickleFlow 120 Edge fan. Its smaller envelope is easier to place, though it does not offer the Noctua's two-tower heat-exchange area. Thermalright's 154 mm Burst Assassin uses one aluminium tower, six 6 mm heatpipes, a copper base and a 120 mm ARGB PWM fan. It is the middle ground for builders who want lighting without moving to a much larger cooler.
Cooler Master's fan is specified for 690 to 2,500 RPM, so a poor curve can become noticeable under a long all-core task. Thermalright specifies 1,550 RPM plus or minus 10 percent, 66.17 CFM maximum airflow and a stated noise ceiling of 25.6 dB(A).
Best overall: Noctua NH-D15 chromax.black

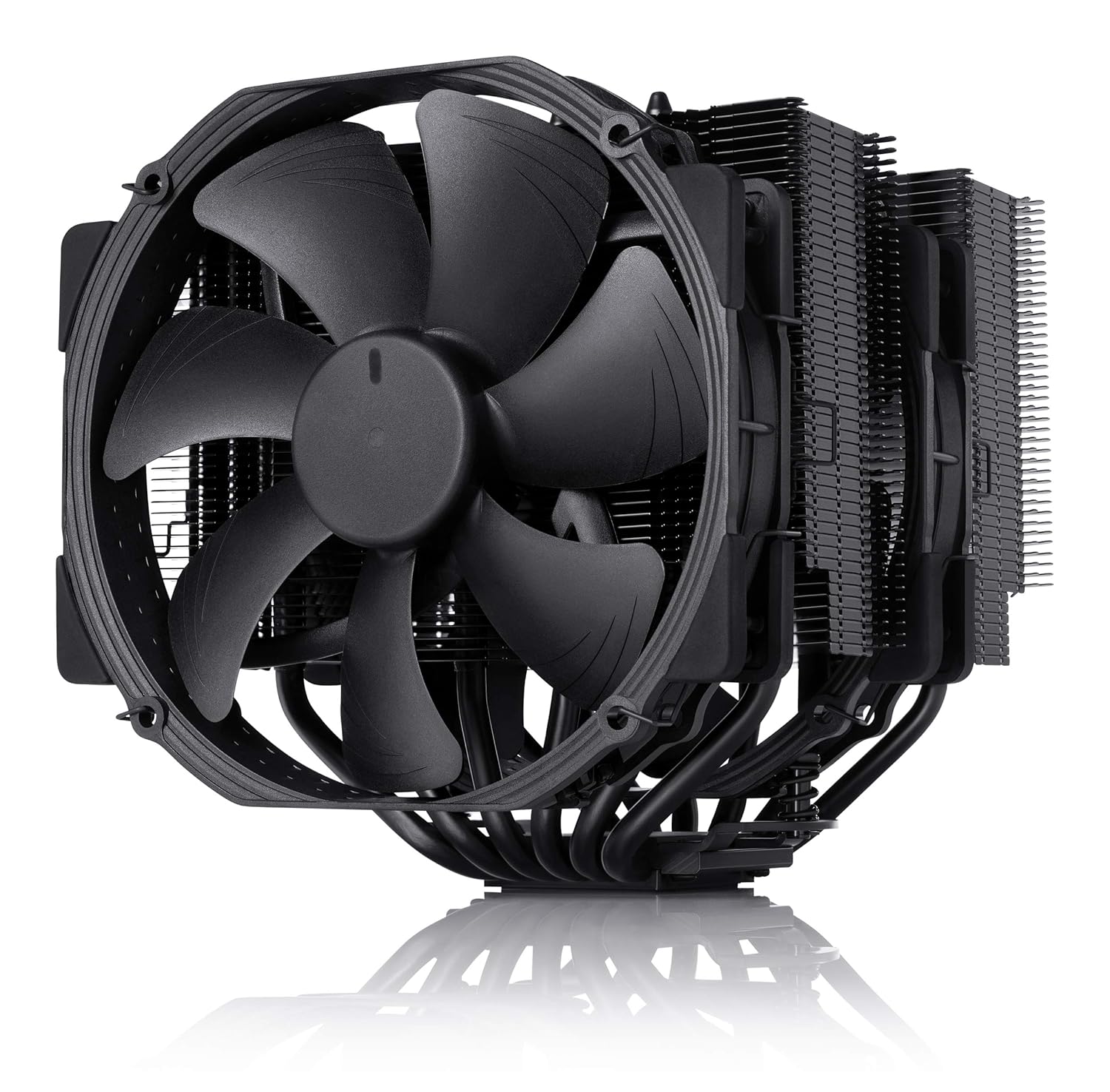

Noctua NH-D15 chromax.black
The NH-D15 chromax.black earns the overall pick because it pairs a wide dual-tower heatsink and six heatpipes with two 140 mm NF-A15 PWM fans, giving an AM5 gaming system substantial thermal headroom without defaulting to a high-pitched small fan. Noctua includes AM5-capable SecuFirm2 hardware, NT-H1 paste, a PWM Y-cable and low-noise adaptors, so the package is unusually complete for a first-time builder. It suits a Ryzen 7 or Ryzen 9 gaming PC where quiet sustained performance matters and the chassis has genuine 168 mm cooler clearance. The important limitation is physical: the front fan may need lifting above tall RAM, and this already tall cooler can then conflict with a side panel. It is also visually dominant, so compact cases and minimal builds should measure before choosing the badge winner.
Pros
- Dual 140 mm NF-A15 PWM fans spread airflow across a wide two-tower heatsink.
- AM5 SecuFirm2 mount, NT-H1 paste, Y-cable and low-noise adaptors are included.
- Six heatpipes give demanding Ryzen gaming CPUs more sustained cooling headroom.
Cons
- 168 mm height can exceed the CPU-cooler limit in many compact cases.
- Raising the front fan for tall RAM can increase the already demanding clearance requirement.
Best value: Cooler Master Hyper 212 Black

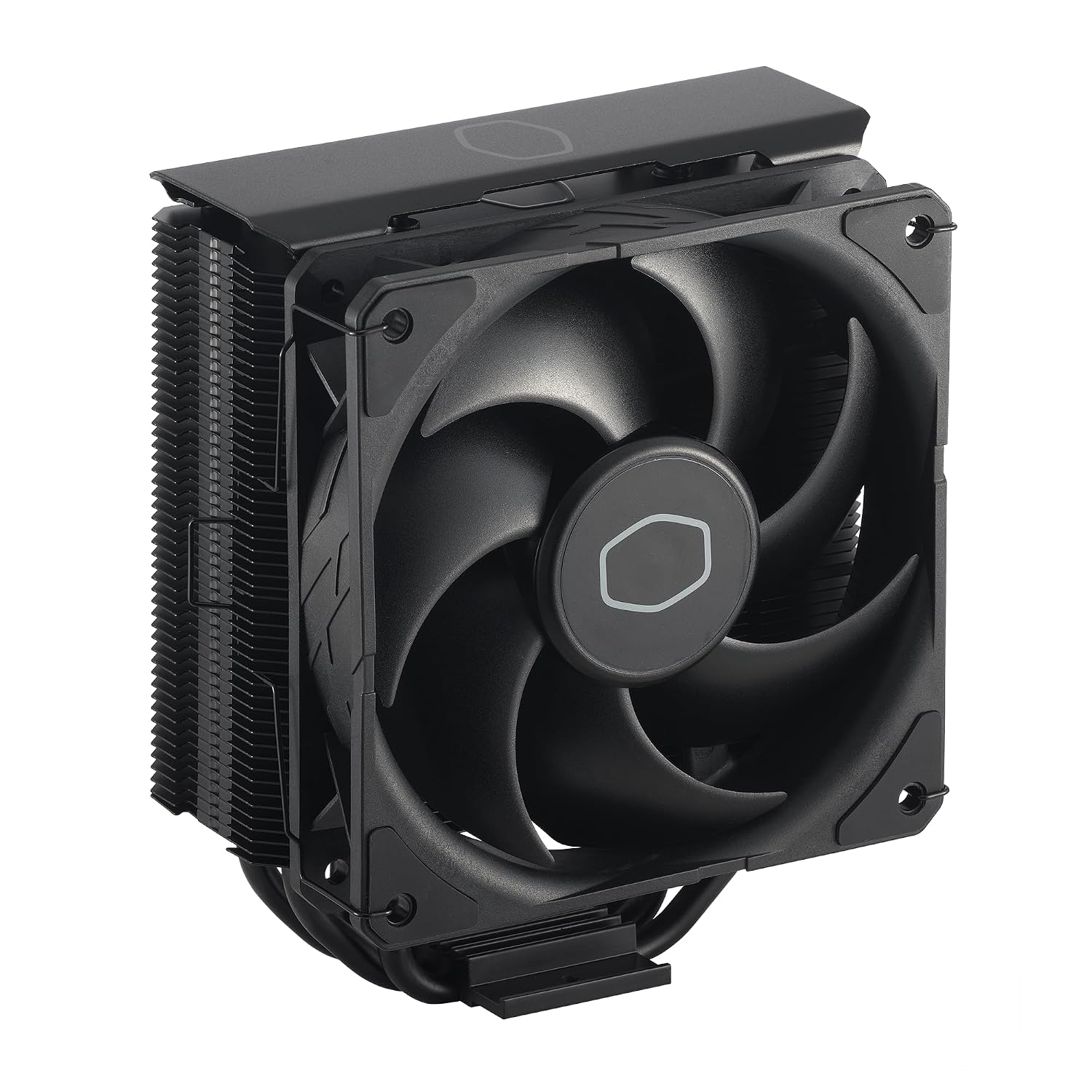

Cooler Master Hyper 212 Black
The Hyper 212 Black is the sensible value choice when a gaming build needs a current AM5 mounting path and a cooler that is easier to house than a dual tower. Its four heatpipes meet at a copper base, while the SickleFlow 120 Edge PWM fan is specified from 690 to 2,500 RPM. Cooler Master rates the redesigned brackets for AM5 as well as newer Intel sockets and lists a 152 mm overall height, a useful target for mid-towers with limited headroom. Choose it for a mainstream Ryzen gaming CPU and a case where fit, straightforward installation and one-fan simplicity outweigh maximum overclocking margin. The tradeoff is that a single tower with four heatpipes has less surface area than the Noctua, and the fan's high upper speed makes motherboard tuning important if quiet gaming is a priority.
Pros
- 152 mm height is easier to accommodate in many mid-tower gaming cases.
- Four heatpipes and a copper base provide a direct, conventional air-cooling layout.
- SickleFlow 120 Edge PWM fan can run down to 690 RPM when a quiet curve is configured.
Cons
- One 120 mm fan and four heatpipes leave less thermal reserve than the NH-D15 dual tower.
- The 2,500 RPM ceiling can be audible if the motherboard uses an aggressive automatic curve.
Best for compact RGB builds: Thermalright Burst Assassin 120 ARGB

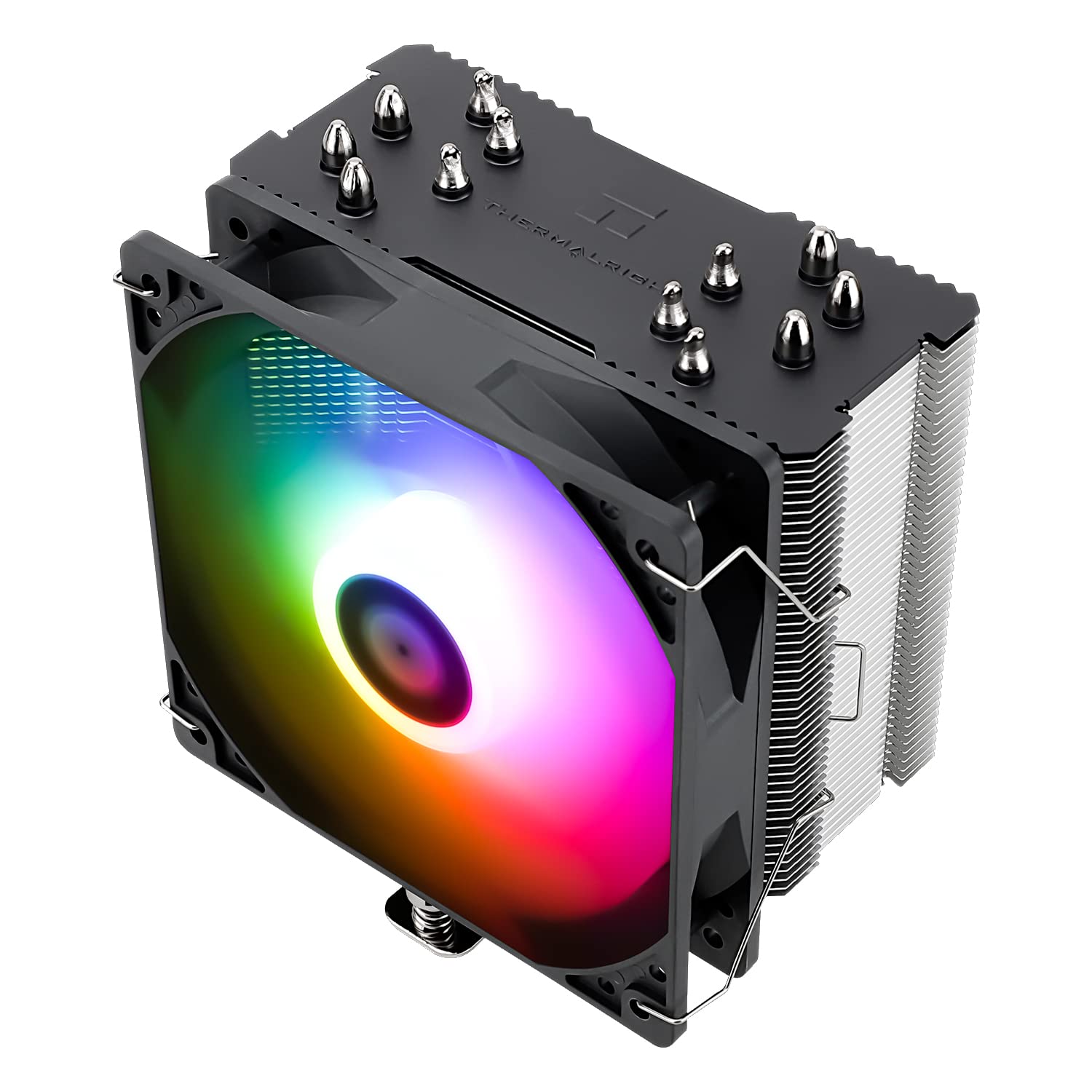

Thermalright Burst Assassin 120 ARGB
Thermalright's Burst Assassin 120 ARGB is the pick for an AM5 gaming build that wants a single-tower footprint and visible lighting without giving up six heatpipes. The 124 by 77 by 154 mm cooler combines an aluminium fin stack, copper base and six 6 mm heatpipes with a TL-C12CG-S 120 mm ARGB PWM fan. Thermalright lists AM5 hardware in the box, a 1,550 RPM fan speed, 66.17 CFM maximum airflow and an S-FDB bearing rated for a long service life. It is a strong fit for a windowed mid-tower with a 154 mm or greater cooler allowance. The limitation is that its single fan and single tower are not a substitute for the Noctua's larger two-fan assembly during sustained heavy workloads, and the ARGB lead needs an available compatible header or a plan for lighting control.
Pros
- Six 6 mm heatpipes and a copper base give this single tower more hardware than typical entry coolers.
- 154 mm height fits cases that cannot accept the 168 mm Noctua.
- TL-C12CG-S fan adds ARGB lighting while using a standard four-pin PWM power connection.
Cons
- A single 120 mm fan cannot match the broad dual-fan cooling area of the NH-D15.
- ARGB lighting requires a compatible header or separate controller planning.
How to choose between these three coolers
Start with the case specification, not a performance chart. Reserve at least the published cooler height, then check whether the memory kit pushes the front fan upward. The NH-D15 should be selected only when the side-panel and RAM question has a clear answer. It is the quiet-performance choice for a roomy Ryzen gaming system, especially when long rendering or compiling sessions occasionally join ordinary games.
The Hyper 212 Black is easier to recommend where a 152 mm limit leaves no margin for a larger cooler. It retains an AM5 bracket and a wide 690 to 2,500 RPM control range, but the fan curve should be set after the system is assembled. The Burst Assassin is useful when the build needs six heatpipes in a 154 mm format and an ARGB fan. Neither smaller option turns a restricted enclosure into a high-airflow one, so keep front intake and rear exhaust clear before blaming the cooler.
Frequently asked questions
Do these CPU coolers support AMD AM5?
Yes. The three listed products explicitly include AM5 support in their current product information. Installation still requires using the correct AMD hardware from the box and following that cooler's instructions. Do not assume a bracket from an older AM4-only package is interchangeable, and keep the AM5 backplate arrangement required by the manufacturer intact during installation.
Is the Noctua NH-D15 too large for a gaming PC?
It can be. Its published height is 168 mm, and tall RAM may require moving the front 140 mm fan higher. Check the case's CPU-cooler clearance rather than only its external width, then compare that limit with the final fan position. If the fit is uncertain, the 152 mm Hyper 212 Black or 154 mm Burst Assassin creates more side-panel margin.
Should a Ryzen gaming PC use a large air cooler or an AIO?
A large air cooler can be a practical choice when case clearance, airflow and the CPU's intended workload align. These three are air coolers, so they avoid radiator placement and pump considerations. An AIO may suit a layout with limited tower height or a different aesthetic, but it introduces radiator, tube and pump planning rather than removing compatibility checks.
