Best Gaming PC Fan Hubs 2026: ARCTIC vs CORSAIR vs Thermalright
Compare the best gaming PC fan hubs for 2026, from a simple ten-port PWM splitter to software-led RGB control for a cleaner gaming build today at home.
Disclosure: As an Amazon Associate, I earn from qualifying purchases.
Prices and availability are accurate as of the time of publication and are subject to change.
The ARCTIC Case Fan Hub is the best gaming PC fan hub for most builds because it gives ten PWM fans stable SATA power without tying you to a software ecosystem. CORSAIR's iCUE Commander CORE XT is the better choice when fan curves, temperature sensing and Corsair RGB belong in the same control plan.
Best gaming PC fan hubs: what separates these three
A fan hub solves a very specific problem: a case can have more fans than usable motherboard headers. It does not make any fan quieter by itself, and it does not turn incompatible RGB plugs into a unified lighting system. The useful distinction is how the hub receives power and control. A SATA-powered PWM hub draws fan power from the PSU while a single motherboard header supplies the speed signal. That protects the header from having to power a full bank of fans, but every connected fan usually follows the same curve.
The ARCTIC and Thermalright models are straightforward ten-port PWM distributors. They suit builders who want BIOS or motherboard-software control and do not need a lighting controller. The CORSAIR is a USB-connected controller with six fan headers, RGB integration and two temperature probes. It costs more in setup attention, but it enables different decisions: a sensor can sit near a GPU or top radiator, and iCUE can react to that temperature rather than only the CPU sensor.
| Product | Best for | Price |
|---|---|---|
| ARCTIC Case Fan Hub | Best overall | View |
| CORSAIR iCUE Commander CORE XT | Best for RGB control | View |
| Thermalright TL-FAN-HUB | Best simple alternative | View |

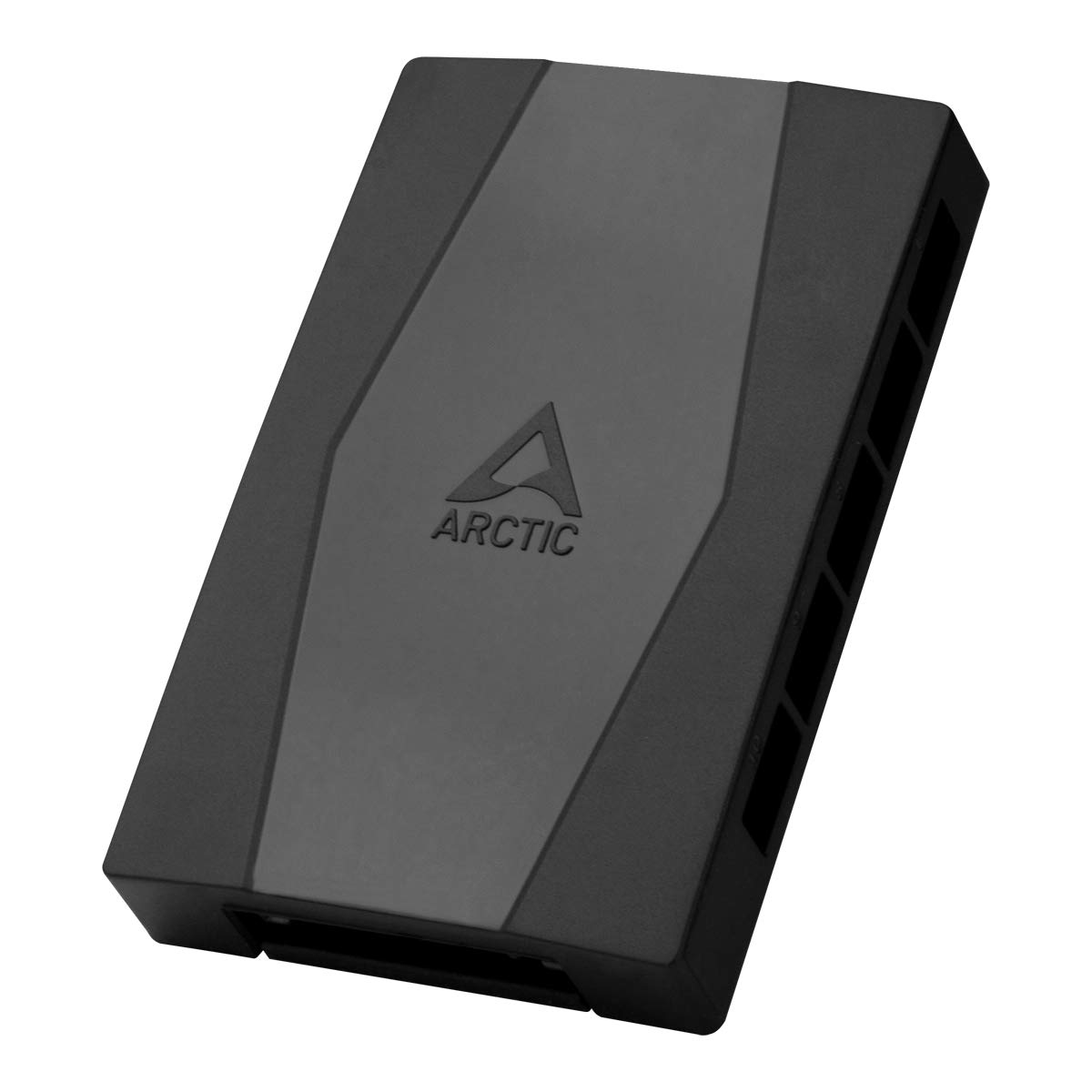

ARCTIC Case Fan Hub: the best default for a high-airflow case
ARCTIC Case Fan Hub
The ARCTIC Case Fan Hub earns the overall pick because its ten four-pin PWM sockets cover a large gaming case, a multi-fan air build, or several radiator fans without adding a proprietary control layer. It uses SATA power plus one four-pin motherboard connection, so the board supplies the PWM instruction while the PSU supplies the fan current. ARCTIC specifies synchronous control across the connected fans and returns RPM from the first socket, which is exactly the simple, predictable behavior most BIOS fan curves expect. Its 86.3 by 55.6 by 14.3 mm body includes magnetic strips and adhesive pads, making it easy to hide behind a motherboard tray. Choose it for standard PWM case fans when one shared curve is sensible. The limitation is important: it has no RGB ports, no USB telemetry, and it cannot give ten fans independent curves. Plan groups carefully, especially if radiator and case fans need different responses.
Pros
- Ten 4-pin PWM sockets suit densely populated cases and large radiator layouts
- SATA power keeps a bank of fans off a single motherboard header
- Magnetic strips and adhesive pads give two practical mounting options
Cons
- All attached fans follow the same PWM signal rather than separate curves
- Only the first socket reports fan speed back to the motherboard
- No ARGB or proprietary RGB control is built into the hub

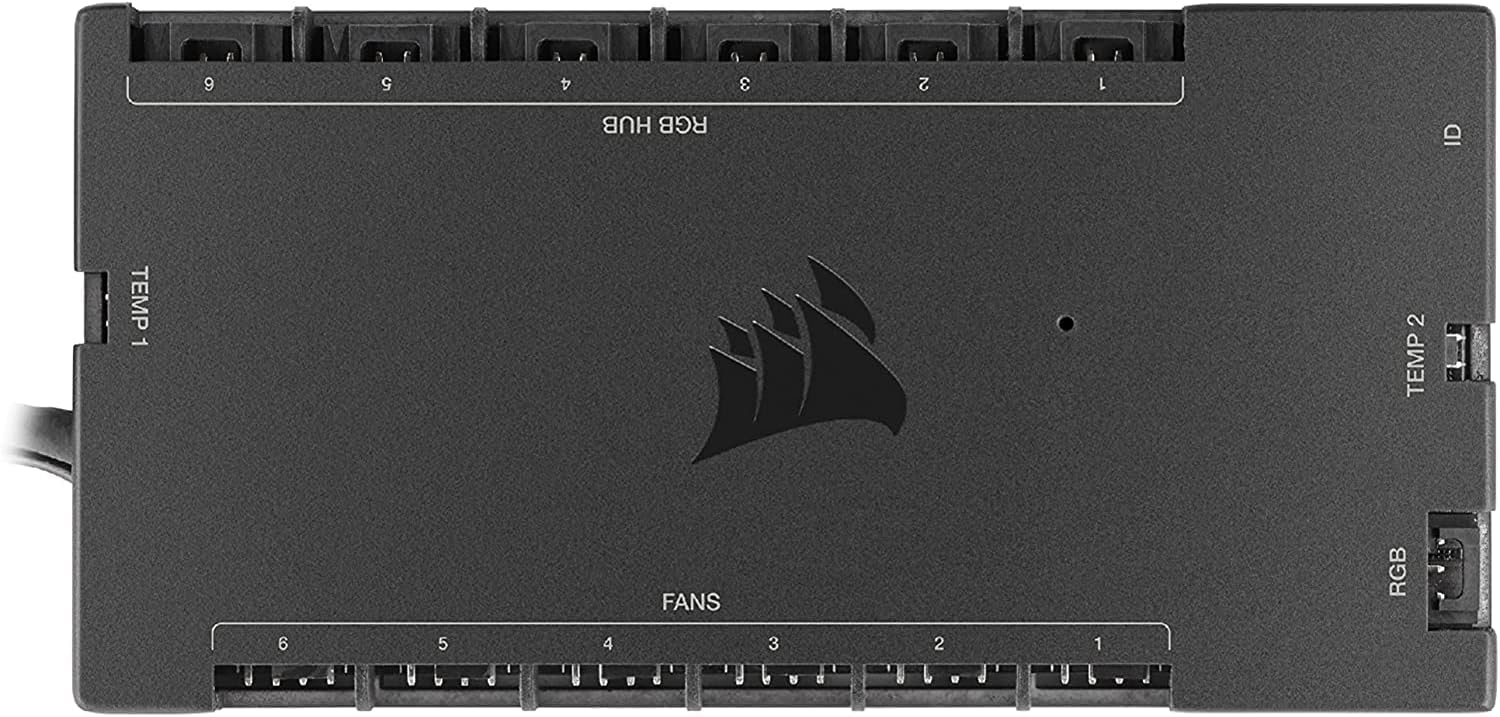

CORSAIR iCUE Commander CORE XT: for a planned RGB ecosystem
CORSAIR iCUE Commander CORE XT
The iCUE Commander CORE XT is for a gaming PC where cooling decisions and lighting are already part of the CORSAIR ecosystem. It has six PWM fan headers rather than ten, but adds an internal USB 2.0 connection, USB pass-through, and two repositionable temperature sensors. Those sensors are its most useful difference: a builder can place one near a GPU exhaust path and create a response that follows the heat source being managed. CORSAIR also lists automatic detection for compatible addressable CORSAIR RGB fans and support for up to 264 RGB LEDs on compatible devices, so it is a genuine controller rather than only a splitter. A magnetic, low-profile 132 by 69 by 16 mm enclosure helps installation in a steel case. Choose it when you value iCUE scenes, sensors and compatible RGB as much as fan expansion. Its tradeoff is software and ecosystem dependence: RGB compatibility is not universal, and six ports may be too few for a ten-fan case.
Pros
- Two included temperature probes allow curves based on local case heat
- Six PWM headers combine fan control with compatible CORSAIR RGB management
- Internal USB pass-through helps preserve a limited motherboard USB header
Cons
- Six fan ports can require an extra splitter in a very full chassis
- RGB features work best with the compatible CORSAIR connector ecosystem
- iCUE software adds setup and maintenance beyond a BIOS-controlled hub

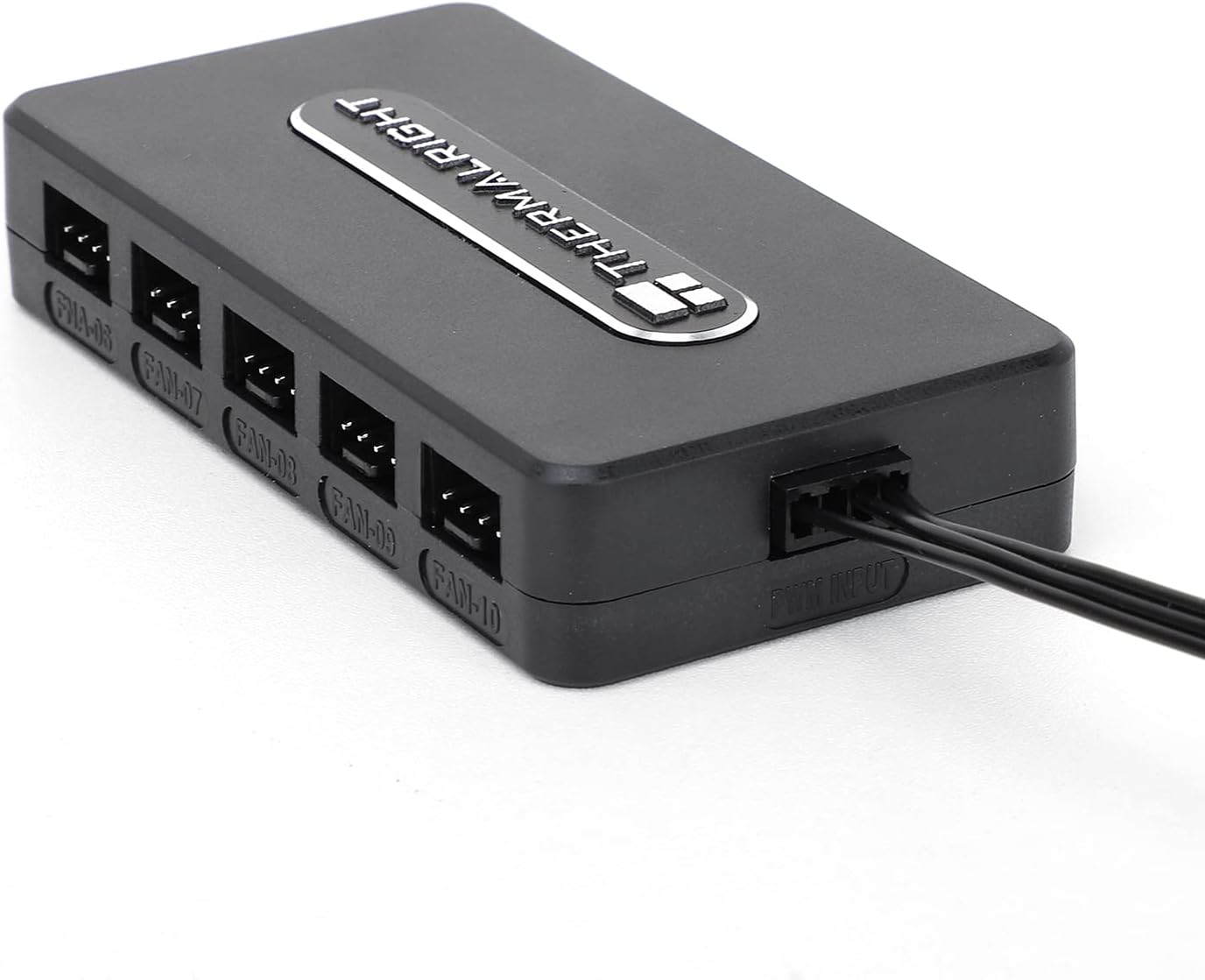

Thermalright TL-FAN-HUB: a focused ten-port alternative
Thermalright TL-FAN-HUB
Thermalright's TL-FAN-HUB is the focused alternative for a builder who wants a compact SATA-powered controller and ten four-pin fan connections without buying RGB features they will not use. The Amazon listing describes support for up to ten fans, a direct 12 V SATA power lead and a single motherboard PWM-header connection. In practice, that means the connected fans share the motherboard's speed instruction while the power supply carries the electrical load, the same sensible architecture for a bank of ordinary PWM case fans. It is a particularly good fit for a budget-oriented airflow refresh where the motherboard already has a capable fan-control page and the case lighting uses a separate controller. Choose it when port count matters more than sensors or software. The limitation is that it is intentionally basic: it does not add RGB control, individual RPM reporting or separate zones, so mixed radiator and case fan duties may deserve two hubs or a more advanced controller.
Pros
- Ten 4-pin ports expand a single motherboard PWM header for a large fan bank
- Direct SATA input supplies 12 V power instead of loading the board header
- No USB software layer is required for a conventional BIOS fan curve
Cons
- Every connected fan shares one control signal rather than individual zones
- There are no temperature probes for GPU or case-aware curve planning
- Lighting cables need a separate solution because this is fan control only
How to choose the right PWM fan hub
Start by counting connectors, not fans. A hub with ten ports is useful only if your fans have the compatible four-pin connector and your case has room for the cable runs. Then separate cooling zones. Putting two CPU radiator fans and six intake fans on one shared curve may be acceptable in a simple build, but it gives away control when the GPU is the hottest component during gaming. A small hub for each zone can be more logical than one full ten-port hub.
Check the power path as well. SATA-powered hubs remove the combined fan load from the motherboard header, but they still need both the SATA lead and the control lead connected. Do not use a hub to hide a damaged fan cable, and do not assume it offers independent RPM readings. The first monitored port is normally the only speed your board sees. Finally, treat RGB as a separate compatibility question. Standard PWM controls rotation, while lighting can use motherboard ARGB, a brand-specific plug or its own controller.
Frequently asked questions
Can a PWM fan hub control every fan separately?
Usually no. A conventional hub repeats one PWM signal from the motherboard header to all connected fans, so they use the same curve. The ARCTIC and Thermalright options here are designed around that shared-control approach. Use multiple headers or a controller with distinct channels when radiator fans, intake fans and exhaust fans need independently managed behavior.
Is SATA power necessary for a gaming PC fan hub?
For a larger fan bank, SATA power is the sensible design because it supplies the fans directly from the PSU instead of asking one motherboard header to carry their combined load. You still connect the hub's control lead to a compatible fan header. Follow the hub manual and motherboard documentation rather than assuming any header is configured for PWM.
Does a fan hub also control RGB lighting?
Not automatically. The ARCTIC and Thermalright hubs in this comparison distribute fan power and PWM control, not lighting. The CORSAIR controller adds lighting management for compatible CORSAIR RGB hardware, but that does not make it a universal ARGB adapter. Check the exact fan connector and controller ecosystem before combining lighting parts.
Prices and availability are accurate as of publication and can change.
